- 24/48/72/96/110 VDC Input
- Reinforced Isolation
- Input Under-Voltage Protection
- Output Over-Voltage ,Over Current and Short Circuit Protection
- Class II, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
| Article number | 0RQB-50Y12LG |
| Available stock | 7 |
| Manufacturer | Bel Power |
| Type | DC/DC |
| Input Voltage | 14.4 – 154AC |
| Output voltage | 12V |
| Output current | 4.2A |
| Total power | 50W |
| Op. temperature | -40 / 105°C |
| Size | 58.4×36.8x15mm |
| Weight | 63g |
| Efficiency | 91% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | UVP, OVP, OCP, SCP, EN62368 |

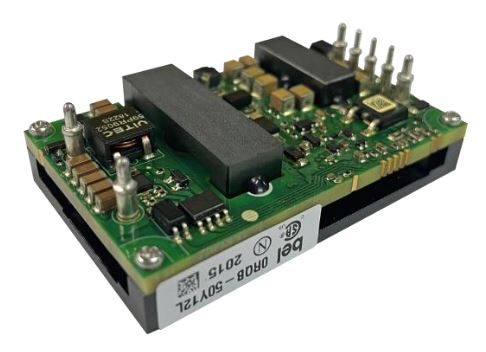

The 0RQB-50Y12x is an isolated DC/DC converter providing 50 W of output power from a wide input range (24 / 48 / 72 / 96 / 110 V typical). Standard features include remote on/off, input under-voltage protection, output over-voltage protection, over current and short circuit protection.
This converter can also provide a 5 V/5 mA auxiliary supply. When a large hold-up capacitor is added, the converter can still work up to 12 ms when the input supply is interrupted.
