• 2 isolated outputs
• 1500 to 2000 VAC voltage withstand test
• Input undervoltage lockout
• Inhibit input, adjustable output voltages
• Outputs no-load, overload, and short-circuit proof

Article number	40IMX7-12-12-8G
Available stock	1
Manufacturer	Bel Power
Type	DC/DC
Input Voltage	16.8 – 75VDC
Output voltage	12V
Output current	300mA
Output voltage 2	12V
Output current 2	300mA
Total power	7.2W
Op. temperature	-40 / +85°C
Size	45.7×25.4×10.5mm
Weight	20g
Efficiency	83%
Formfactor	THT mountable
Application	Industry
Specials	EN60950, OLP, SCP

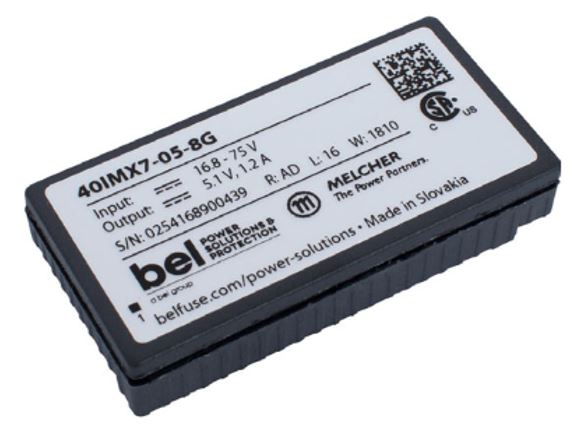

The IMX7/IMS7 Series of board-mountable 7 Watt DC-DC converters have been designed according to the latest industry requirements and standards. The converters are particularly suitable for use in mobile or stationary applications in transport, railways, industry, or telecom, where variable input voltages or high transient voltages are prevalent.
Covering a total input voltage range from 16.8V to 75V, the converters are available with electrically-isolated double outputs and flexible load distribution on double outputs. An inhibit input allows remote on/off.
Features include efficient input and output filtering with good transient and surge protection, low output ripple and noise, consistently high efficiency over the entire input voltage range, and high reliability as well as excellent dynamic response to load and line changes.
The converters provide basic insulation with SELV outputs as for instances required in battery-supported systems, where the bus voltage may exceed the SELV limit of 60 V. The models 70IMX7 and 110IMX7 are CE-marked.
The circuitry is comprised of integral planar magnetics. All components are automatically assembled and securely soldered onto a single PCB without any wire connections.
Magnetic feedback ensures maximum reliability and repeatability in the control loop over all operating conditions. Careful considerations of possible thermal stresses ensure the absence of hot spots, providing long life in environments, where temperature cycles are a reality. The thermal design allows operation at full load up to an ambient temperature of 85 °C in free air without using any potting material. For extremely high vibration environments the case has holes for screw mounting.
