• Wide analog input voltage range from -5 V to +5 V
• CMOS low power dissipation
• Complies with JEDEC standards
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

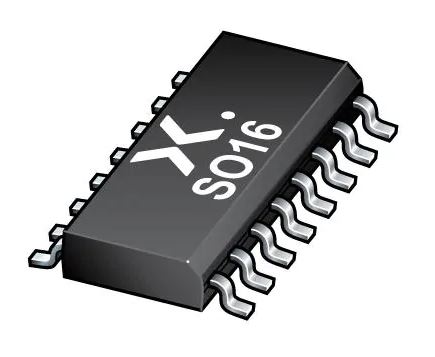

Article number	74HC4051D,652
Available stock	13
Manufacturer	Nexperia
Type	Multiplexer Switch IC – SMD
Channels	8
Case	SOIC-16
Configuration	1 x 8:1
On resistance max	180 Ohm
Supply voltage min	2 V
Supply voltage max	10 V
Bandwith	180 MHz
Op. temperature	-40 / +125°C
Weight	200 mg
Application	General purpose

The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
