- Fully encapsulated Plastic Case
- Package Dimension 88.9×63.5×30.0 mm (PCB Mounting Version)
- Universal Input 85-264VAC, 47-440 Hz
- Protection Class lI
- Medical Safety Approval to UL/cUL/IEC/EN 60601-1 3rd Edition
| Article number | AB40S2400A |
| Available stock | 1 |
| Manufacturer | Delta Electronics |
| Type | AC/DC |
| Input Voltage | 85 – 264VAC |
| Output voltage | 24V |
| Output current | 1.66A |
| Total power | 40W |
| Op. temperature | -40 / +80°C |
| Size | 88.9×63.5x30mm |
| Weight | 310g |
| Efficiency | 84% |
| Formfactor | THT mountable |
| Application | Medical |
| Specials | EN60601, EN60950, protection class II, OVP, SCP |

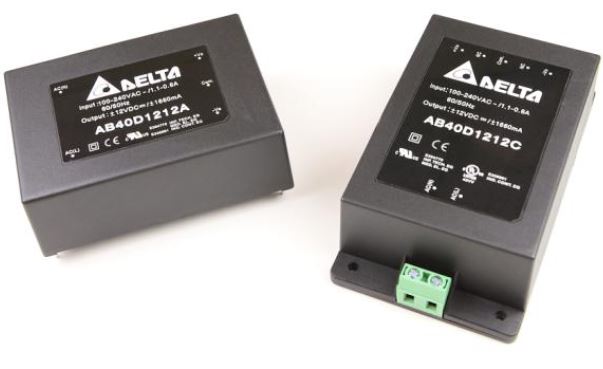

The AB40S/D series is a range of fully encapsulated AC/DC power modules. These high performance products feature an extended operating temperature range of -40°C to +80°C. Universal input voltage 85-264VAC and UL/IEC/EN safety approvals including medical safety and UL508 listing qualify these power supplies modules for applications in products with worldwide markets.EMI-filter meets EN55022, class B and FCC,part15, class B.
The AB40S/D series power modules provide an economical solution for many space critical applications in commercial, medical and industrial electronic equipment.
