• Universal AC input voltage range
• High power density in corrosion resistant aluminium casing
• Power Boost of 150% up to 7 seconds
• Advanced Power Boost (APB)
• DNV GL and ABS approvals for maritime applications
• Extreme low temperature cold start at -40°C
• Built-in DC OK Contact and LED indicator for DC OK/Overload

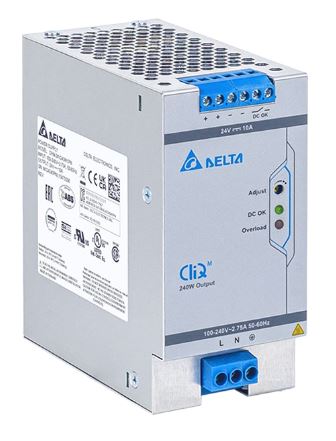

Article number	DRM-24V240W1PN
Available stock	2
Manufacturer	Delta
Type	AC/DC
Input Voltage	85 – 264VAC
Output voltage	24V
Output current	10A
Total power	240W
Peak power	360W
Op. temperature	-25 / +70°C
Size	124x60x117mm
Weight	940g
Efficiency	93%
Formfactor	DIN-Rail
Application	Industry
Specials	EN62368, OVP, OLP, OTP, SCP, 4.5kVDC isolation

Delta Electronics is introducing one of the slimmest DIN rail industrial power supplies in its class, the CliQ M DIN rail power supply series. To fulfill the demands in maritime applications, the product is designed according to major industrial and maritime (Lloyd’s Register) safety standards. Other features include compliance with harmonic current IEC/EN 61000-3-2, class A. In addition to having Power Boost of 150% for 5 seconds, the CliQ M series is the first in the CliQ family to feature Advanced Power Boost (APB). With multiple loads connected in a system, a large outrush current could be drawn (demanded) due to one fault load. This will be detected by APB. The APB will trip the circuit breaker (circuit breaker with appropriate rating based on the system load) on the current path of the fault load due to high current. This thus prevents the system from shutting down while the other connected current paths continue to operate without interruption. Additionally, the product also includes built-in DC OK contact and LED indicator for DC OK/ Overload.
