• Universal AC input voltage range
• Power will not de-rate for the entire input voltage range
• Power Boost of 150% for 3 seconds
• Full corrosion resistant aluminium casing
• Hazardous Locations approval to ATEX and Class I, Div 2

Article number	DRP024V240W1AA
Available stock	4
Manufacturer	Delta
Type	AC/DC
Input Voltage	85 – 264VAC
Output voltage	24V
Output current	10A
Total power	240W
Peak power	360W
Op. temperature	-20 / +80°C
Size	119x85x121mm
Weight	1.04kg
Efficiency	90%
Formfactor	DIN-Rail
Application	Industry
Specials	Metal case, IEC62368, 20ms hold-up

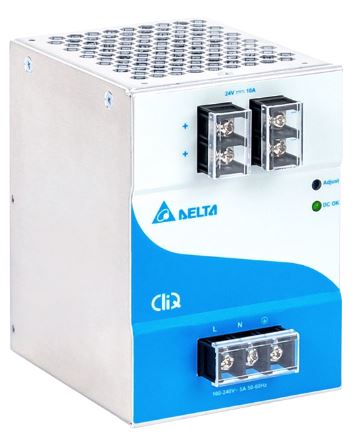

The DRP024V240W1AA is part of the CliQ DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group. The rugged metal is both shock and vibration resistant according to IEC 60068-2 standard. The product operates within a wide temperature range from -20°C to +80°C. The DRP024V240W1AA features universal AC input voltage range from 85 Vac to 264 Vac and the power will not de-rate for the entire input voltage range. The single phase power supply unit includes overvoltage, overcurrent, over temperature and short circuit protections. The product features built-in Power Boost of 150% for 3 seconds. Such feature enables reserve power to be always available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher power rating. Another great feature is the conformal coating on the PCBA which allows DRP024V240W1AA to be certified to ATEX and Class I, Div 2 for use in hazardous locations.
