• Universal AC input voltage range
• Power Boost of 150% for 3 seconds and 200% for 2 seconds
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
• Hazardous Locations approval to ATEX and Class I, Div 2

Article number	DRP024V480W1AA
Available stock	3
Manufacturer	Delta Electronics
Type	AC/DC
Input Voltage	90 – 264Vac
Output voltage	24V
Output current	20A
Total power	480W
Peak power	960W
Op. temperature	-20 / +80°C
Size	119x160x121mm
Weight	1.8kg
Efficiency	86%
Formfactor	DIN-Rail
Application	Industry
Specials	ATEX, EN62368, Metal case, hold-up 20ms

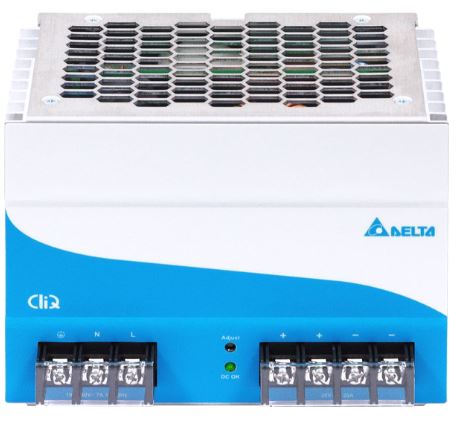

The DRP024V480W1AA is part of the CliQ DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group. The rugged metal is both shock and vibration resistant according to IEC 60068-2 standard. The product operates within a wide temperature range from -20°C to +80°C. The DRP024V480W1AA features universal AC input voltage range from 85 Vac to 264 Vac and the power will not de-rate for the entire input voltage range. The single phase power supply unit includes overvoltage, overcurrent, over temperature and short circuit protections. The product features built-in Power Boost of 150% for 3 seconds and 200% for 2 seconds. Such feature enables reserve power to be always available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher power rating. Another great feature is the conformal coating on the PCBA which allows DRP024V480W1AA to be certified to ATEX and Class I, Div 2 for use in hazardous locations
