• Universal AC input voltage range
• Power will not de-rate for the entire input voltage range
• Rugged and compact design (Vibration 5 G, Shock 30 G)
• Conforms to harmonics current IEC/EN 61000-3-2, Class A
• Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections

Article number	DRP24V48W1AZ
Available stock	36
Manufacturer	Delta Electronics
Type	AC/DC
Input Voltage	85 – 264VAC
Output voltage	24V
Output current	2A
Total power	48W
Op. temperature	-20 / +70°C
Size	101x32x100mm
Weight	220g
Efficiency	87%
Formfactor	DIN Rail
Application	Industry
Specials	EN62368, rugged plastic case, 10ms hold-up

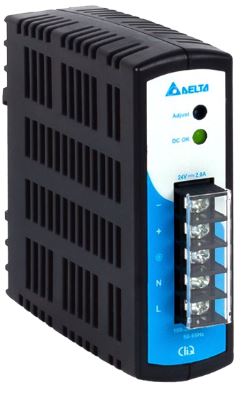

The DRP-24V48W1AZ has a power rating of 48W with 24V output voltage. Its rugged plastic casing has a compact body at only 32 mm wide and operates within a wide temperature range from -20°C to 70°C. Like its CliQ predecessors, the DRP-24V48W1AZ comes with universal AC input and complies with major industrial standards like UL 508 (Safety for Industrial Control Equipment), EMI according to EN 55011 (Industrial, scientific and medical (ISM) radio-frequency equipment) and EMS according to EN 61000-6-2 (Immunity for industrial environments). For broader application compatibility, the product is also certified for ITE (Information Technology Equipment) standard according to IEC/EN/UL 60950- 1 and IEC/EN/UL 62368- 1 Audio/video, Information and Communication Technology Equipment.
