- Full corrosion resistant aluminium casing
- Built-in diagnostic monitoring for DC OK, Discharge and Battery Fail by relay contacts
- Conformal coating option on PCBAs to protect against common dust and chemical pollutants
- Certified according to IEC/EN/UL 62368-1
| Article number | DRU-24V40ABN |
| Available stock | 1 |
| Manufacturer | Delta Electronics |
| Type | DC/DC |
| Input Voltage | 24 – 28 VDC |
| Output voltage | 24V |
| Output current | 40A |
| Total power | 960W |
| Op. temperature | -20 / +60°C |
| Size | 117x50x121mm |
| Weight | 600g |
| Efficiency | 99% |
| Formfactor | DIN-Rail |
| Application | Industry |
| Specials | UPS Module, charge, discharge, EN62368 |

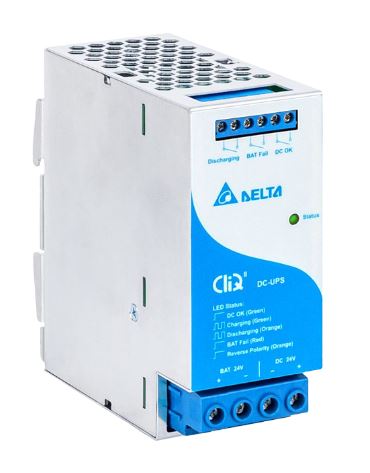

The DRU-24V40ABN CliQ II DC-UPS module is designed to support 24 V system with up to 40 A output and back up time of 4.5 minutes for 15 AH battery capacity. It offers a wide input voltage from 24-28 V and a wide operating temperature range from -20°C to +60°C. This product comes with potential free contacts for battery management signals and LED indicator for battery status. The rugged compact aluminium case is shock and vibration resistant according to IEC 60068-2.
