- 40W Isolated Output
- 2.05’’x1.2×0.4’’ Six-Sided Shield Metal Case
- Regulated Outputs
- Fixed Switching Frequency
- Low No Load Power Consumption
- Continuous Short Circuit Protection

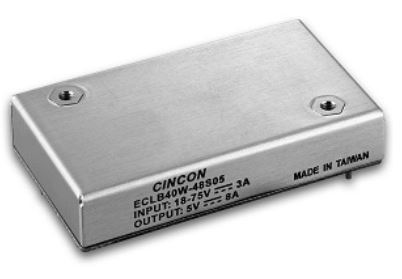

| Article number | ECLB40W-24S12 |
| Available stock | 1 |
| Manufacturer | Cincon Electronics |
| Type | DC/DC |
| Input Voltage | 9 – 36VDC |
| Output voltage | 12V |
| Output current | 3.33A |
| Total power | 40W |
| Op. temperature | -40 / +85°C |
| Size | 52×30.5×10.2mm |
| Weight | 36g |
| Efficiency | 91% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | EN62368, UVP, SCP, OCP, 6 side shield |
