- Rugged construction
- Modular design
- Active cooling
- Operation without derating
- PFC input
- Conformal coating
| Article number | FC4K-E60/E-3U7-S2439 |
| Available stock | 1 |
| Manufacturer | Absopulse |
| Type | AC/AC |
| Input Voltage | 190 – 264VAC |
| Output voltage | 230VAC / 50Hz |
| Output current | 17A rms |
| Total power | 4000VA |
| Op. temperature | 0 / +50°C |
| Size | 432x132x432 mm |
| Weight | 12kg |
| Efficiency | 80% |
| Formfactor | Enclosed |
| Application | Industry |
| Specials | High MTBF, modular constructionm rugged design |

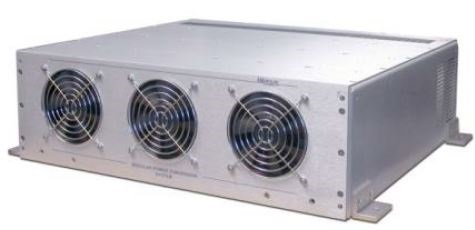

This rugged, DC/AC inverter system uses field proven, microprocessor controlled frequency converter utilizes PWM technology to generate the
required output power with pure sine wave output voltage. It is built with internal power modules. Four CAP 500 input modules convert the input voltage to an internal DC bus voltage, which feeds two MSI 2300 output modules. The built-in fans provide sufficient airflow for operation without de-rating to the specified temperature. The high frequency conversion enables a compact construction, low weight and high efficiency. The unit has full electronic protection. The input and output are filtered for low noise. The use of components with established reliability results in high MTBF. The unit is manufactured at our plant under strict quality control.
