- High density frontends 10.5 to 16.1 W/in3
- Universal input voltage range (90-264 VAC) with PFC
- Droop current share with ORing FETs
- I2C interface status and control
- Status LEDs: AC OK, DC OK, Overtemperature
| Article number | FNP600-48G |
| Available stock | 3 |
| Manufacturer | Bel Power |
| Type | AC/DC |
| Input Voltage | 90 – 264VAC |
| Output voltage | 48V |
| Output current | 12.6A |
| Output voltage 2 | 12V |
| Output current 2 | 0.5A |
| Total power | 600W |
| Op. temperature | 0 / 70°C |
| Size | 298×83.8×40.6mm |
| Efficiency | 89% |
| Formfactor | Enclosed |
| Application | Telecom |
| Specials | 1U height, OTP, OVP, OLP |

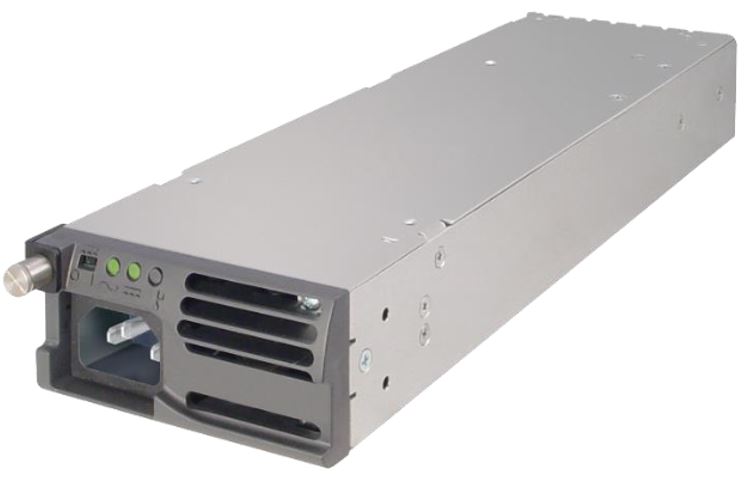

The FNP600/850/1000 power factor corrected (PFC) front ends provide (depending on model) either a 12 VDC or a 48 VDC output for telecom, datacom, and other distributed power applications. Their small 1U by
2U size allows for configurations of either height in hot-swap redundant systems while their internal fan and cooling design permits wide use with reliable operation. Status is provided with front panel LEDs, logic signals,
and via the I2C management interface bus. In addition, the I2C bus can enable the power supply and control fan speed. This powerful feature allows the same power supply to be used in various applications where bus voltages driving isolated dc-dc converters and POL regulators may be different.
The FNP600/850/1000’s meet international safety requirements and are CE marked to the Low Voltage Directive (LVD).
