• LSTTL/TTL compatible
• Low input current capability: 5 mA

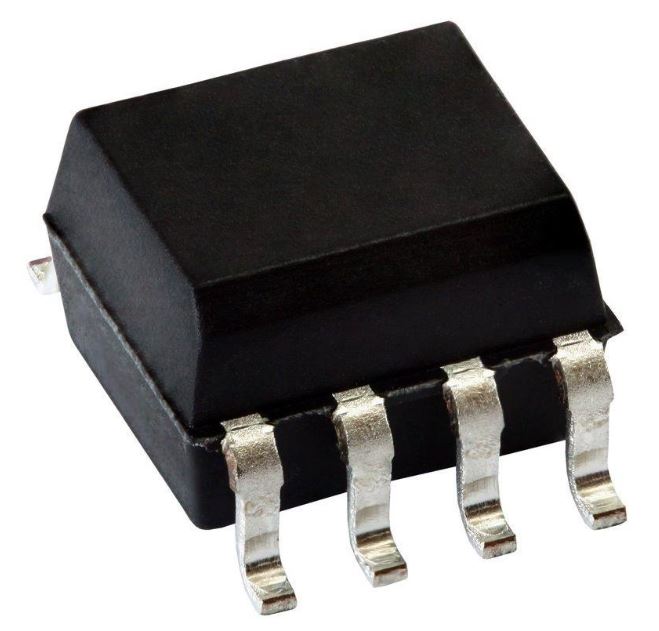

Article number	HCPL-0631-500E
Available stock	200
Manufacturer	Avago / Broadcom
Type	High Speed Optocoupler
Data rate	10 Mb/s
Channels	2
Package	SOIC-8
Isolation voltage	3750 Vrms
Forward voltage	1.5 V
Forward current	10 mA
Reverse voltage	5 V
Reverse current	60 mW
Op. temperature	-40 / +85°C
Weight	292 mg
Application	General purpose

The Broadcom ® 6N137, HCPL-26xx/06xx/4661, HCNW137/26×1 are optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/μs at Vcm = 1000V.
This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from – 40°C to +85°C allowing trouble-free system performance.
