- Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
- Compliant with IEC 60601-1-2 4th Ed. Requirements
- Low touch current (<0.1 mA Normal & <0.3 mA single fault)
- Over-Voltage/Load/Temperature & Short Circuit protections
- 2 x MOPP (means of patient protection)
| Article number | MDS-065APS12 BA |
| Available stock | 1 |
| Manufacturer | Delta |
| Type | AC/DC |
| Input Voltage | 90 – 264VAC |
| Output voltage | 12V |
| Output current | 5.42A |
| Total power | 65W |
| Peak power | 97W |
| Op. temperature | -10 / +70°C |
| Size | 102×50.8x30mm |
| Weight | 130g |
| Efficiency | 88% |
| Formfactor | Open Frame |
| Application | Medical |
| Specials | 2 MOPP, EN62368, OVP, OLP, OTP, SCP |

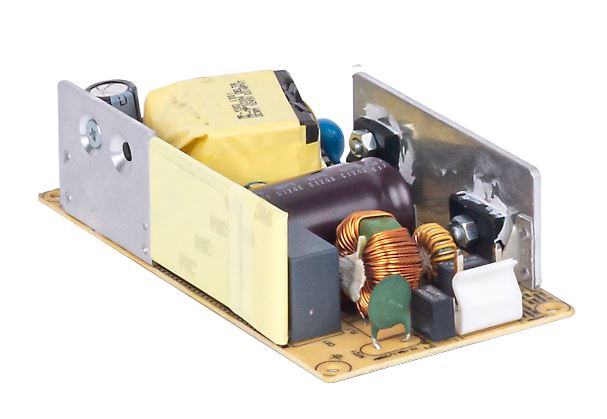

The MDS series of embedded power supply come with universal AC input at 90 Vac to 264 Vac. Other features include low touch current, risk management report available and the electric shock protection comply with 2 x MOPP. The MDS series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN55032 for Information Technology Equipment (ITE) radio-frequency equipment. In addition, only recognized Japanese capacitors are used.
The MDS series of embedded power supply come with both medical and ITE safety approvals including UL/cUL/CE and CB certification and are fully compliant with RoHS Directive for environmental protection.
