- Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
- Compliant with IEC 60601-1-2 4th Ed. Requirements
- Power Good Signal
- 2xMOPP Isolation for Medical Applications
- Up to 120 W~140 W convection, 200 W forced air
| Article number | MDS-200APB24AA |
| Available stock | 2 |
| Manufacturer | Delta |
| Type | AC/DC |
| Input Voltage | 90 – 264VAC |
| Output voltage | 24V |
| Output current | 8.33A |
| Total power | 200W |
| Op. temperature | -10 / +70°C |
| Size | 102×51.1×36.3mm |
| Weight | 200g |
| Efficiency | 93% |
| Formfactor | Open Frame |
| Application | Industry |
| Specials | 2 MOPP, EN60601 IEC62368, OVP, OLP, OTP, SCP |

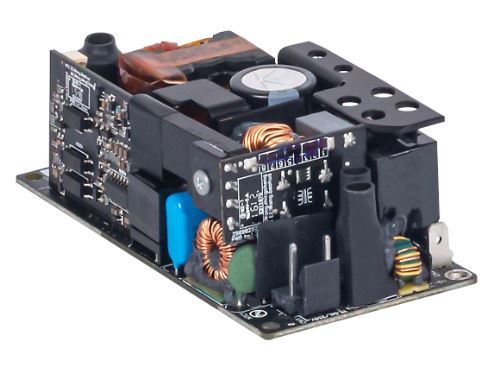

Delta’s MDS-200APB* AA internal open frame power supply comes with universal AC input range from 90 Vac to 264 Vac. Other features include low leakage, Type BF Patient Access Leakage Currents, and electric shock protection compliance with 2 x MOPP requirements. The MDS-200APB* AA is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment; and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment. In addition, only recognized Japanese capacitors are used to ensure long product life.
The MDS-200APB* AA comes with both medical and ITE safety approvals, such as UL/CE and CB certification. Designs are compliant with RoHS Directive for environmental protection.
