• Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
• Compliant with IEC 60601-1-2 4th Ed. Requirements
• Up to 150 Watt Convection
• Up to 500 K Hrs MTBF
• Suited for Type BF Medical Products
• 2 × MOPP isolation

Article number	MDS-250APB24
Available stock	4
Manufacturer	Delta
Type	AC/DC
Input Voltage	90 – 264VAC
Output voltage	24V
Output current	10.4A
Total power	250W
Op. temperature	-10 / +70°C
Size	127x77x36.6mm
Weight	405g
Efficiency	92%
Formfactor	Open Frame
Application	Medical
Specials	2 MOPP, EN60601 IEC62368, OVP, OLP, OTP, SCP

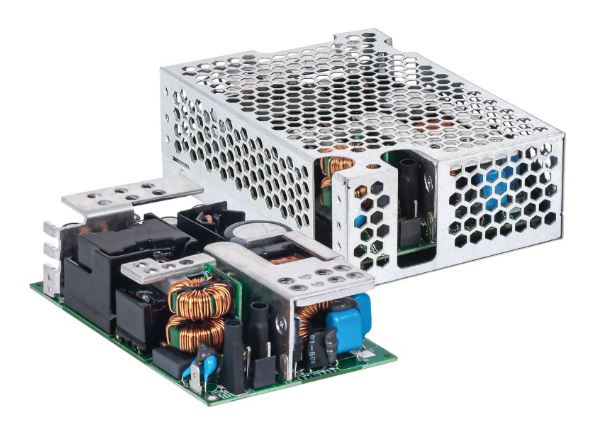

Delta’s new MDS-250APB24 open frame design offers a high energy density (12 Watts/in 3) 3×5 inch design for Type BF patient access medical products. With operating parameters of 90 to 264 Vac universal input voltage, temperatures of -10 to +70 degrees centigrade, and altitudes of up to 5,000 meters (16,400 feet), the design is well suited for a variety of both medical and non-medical applications. Other features include input surge of 300 Vac, low leakage current, no-load input power < 0.5 Watt, and 500K hour MTBF. This product is certified for EMC standards EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment, and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment. In addition, only recognized Japanese capacitors are used to ensure long product life.
An enhanced feature set, includes a 5 Volt/0.5 amp standby output, remote on/off, remote sense, and a power good signal that are included as part of the standard product.
The design, which has protection against shock compliant with 2XMOPP and Type BF requirements, has both medical, and ITE safety approvals, including cURus(US&Canada) /TUV/GB(China); plus, CB certificates with all national deviations. Full compliance with RoHS Directive for environmental protection is included. The unit comes in a standard 3×5 inch footprint, with height suitable for 1U applications. Robust terminals are capable of multiple connections of the main output to the end product.
