- Safety Approvals to IEC 60601-1 Ed. 3 & IEC 62368-1
- Low touch current (<0.1 mA Normal & ,0.3 mA single fault)
- Over-Voltage/Load/Temperature & Short Circuit protections
- 2 x MOPP (means of patient protection)

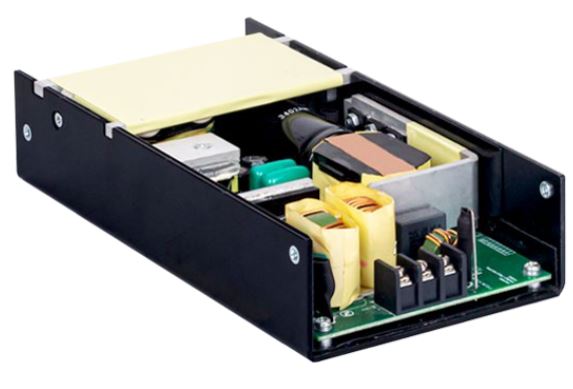

| Article number | MDS-400AUS24BA |
| Available stock | 1 |
| Manufacturer | Delta Electronics |
| Type | AC/DC |
| Input Voltage | 90 – 264VAC |
| Output voltage | 24V |
| Output current | 16.7A |
| Output voltage 2 | 12V |
| Output current 2 | 250mA |
| Total power | 400W |
| Op. temperature | -10 / +70°C |
| Size | 198x97x41.5mm |
| Weight | 910g |
| Efficiency | 92% |
| Formfactor | Open frame |
| Application | Medical |
| Specials | 2 MOPP, OVP, OLP, OTP, SCP, EN60601, EN92368 |
The MDS series of embedded power supply comes with universal AC input at 90 Vac to 264 Vac. Other features include low earth leakage, risk management report available and the electric shock protection comply with 2 x MOPP. The MDS series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Information Technology Equipment (ITE) radio-frequency equipment.
The MDS series come with both medical and ITE safety approvals including UL/cUL/CE and CB certification and are fully compliant with RoHS Directive for environmental protection.
