- Wide Operating Voltage, 90 to 260 VAC, 47 to 63 Hz
- IEC-320-C14 Input Inlet
- Input to Output : 2MOPP
- High ESD immunity
- Suitable professional healthcare facility
- Class I system
| Article number | MPU101-102-P00G |
| Available stock | 1 |
| Manufacturer | Sinpro Electronics |
| Type | AC/DC |
| Input Voltage | 90 – 264VAC |
| Output voltage | 5V |
| Output current | 14A |
| Total power | 70W |
| Op. temperature | -10 / +70°C |
| Size | 189×89.5×45.5mm |
| Weight | 800g |
| Efficiency | 76% |
| Formfactor | Desktop |
| Application | Medical |
| Specials | Class I equippment, 2MOPP, no connector |

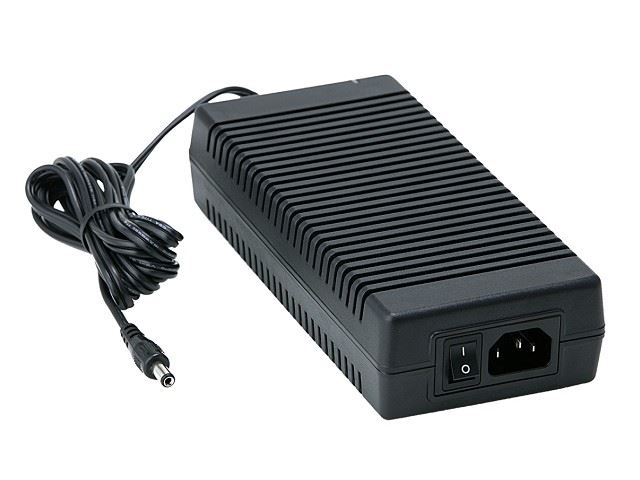

The MPU101 series is a family of desktop power supplies (external power supplies) that are designed to offer 70W continuous output power with a single output (coming with a universal input of 90-260 Vac) at efficiencies up to 83%.
Being a Class I power supply, the MPU101 series delivers high efficiency and high ESD immunity, and features overload protection (OLP), active power factor correction (PFC), a wide operating temperature of -10 to +70°C, and a medical 60601-1 3.1 edition safety standard for 2 x MOPP classification; additionally, all units pass the burn-in test at full load condition. The series conforms to major international safety standards including UL94V-1, IEC/ES/EN/EMC/CSA C22.2 60601-1, etc., and is fully compliant with RoHS directive.
The MPU101 switching power supplies are designed for medical applications and are ideal for medical equipment such as ultrasound systems, patient monitors, blood chemistry analyzers, medical imaging equipment, etc.
