• Universal AC Input (85 Vac – 264 Vac)
• Low Inrush Current / Low Leakage Current
• High efficiency and PF factor to conserve energy
• Conforms to harmonic current IEC/EN/ BS EN 61000-3-2, Class A

Article number	PJ-24V100WCNA
Available stock	1
Manufacturer	Delta
Type	AC/DC
Input Voltage	85 – 264VAC
Output voltage	24V
Output current	4.3A
Total power	100W
Op. temperature	-10 / +70°C
Size	185x72x45mm
Weight	420g
Efficiency	86%
Formfactor	Enclosed
Application	Industry
Specials	EN62368, 3kVAC isolation, 20ms hold-up

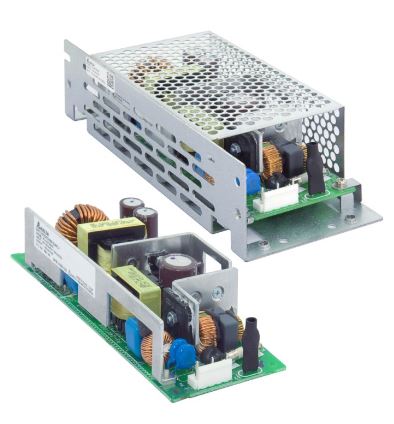

The PJ series of Open Frame Power Supply comes with universal AC input at 85Vac to 264Vac. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN/ BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/ BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/ BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/ BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.
Metal chassis and case cover are available as options for different installation preferences. The PJ series conforms to major international safety standards according to EN/UL/BS EN 62368-1 standards and are fully compliant with RoHS Directive for environmental protection.
