- Universal AC input voltage range (85 Vac – 264 Vac)
- Low Inrush Current / Low Leakage Current
- High efficiency and PF factor to conserve energy
- Conformal coating on PCBA to protect against chemical and dust pollutants
| Article number | PJ-24V50WCNA |
| Available stock | 1 |
| Manufacturer | Delta Electronisc |
| Type | AC/DC |
| Input Voltage | 85 – 264VAC |
| Output voltage | 24V |
| Output current | 2.1A |
| Total power | 50W |
| Op. temperature | -10 / +70°C |
| Size | 162x60x36mm |
| Weight | 280g |
| Efficiency | 85% |
| Formfactor | Enclosed |
| Application | Industry |
| Specials | EN62368, 3kVAC isolation, 20ms hold-up |

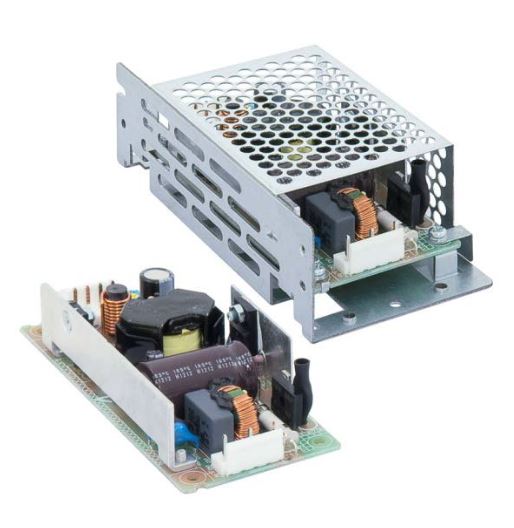

The PJ series of Open Frame Power Supply comes with universal AC input at 85Vac to 264Vac. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN/ BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/ BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/ BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/ BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.
Metal chassis and case cover are available as options for different installation preferences. The PJ series conforms to major international safety standards according to EN/UL 62368-1 standards.
