- Universal AC Input (85 Vac – 264 Vac)
- Power Boost of 200% for 10 seconds
- Low Inrush Current / Low Leakage Current
- High efficiency and PF factor to conserve energy
- Conformal coating on PCBA to protect against chemical and dust pollutants
| Article number | PJB-24V100WBNA |
| Available stock | 3 |
| Manufacturer | Delta |
| Type | AC/DC |
| Input Voltage | 85 – 264VAC |
| Output voltage | 24V |
| Output current | 4.3A |
| Total power | 100W |
| Peak power | 200W |
| Op. temperature | -10 / +70°C |
| Size | 155x62x33.5mm |
| Weight | 260g |
| Efficiency | 87% |
| Formfactor | Open Frame |
| Application | Industry |
| Specials | EN62368, 3kVAC isolation, 20ms hold-up, SCP |

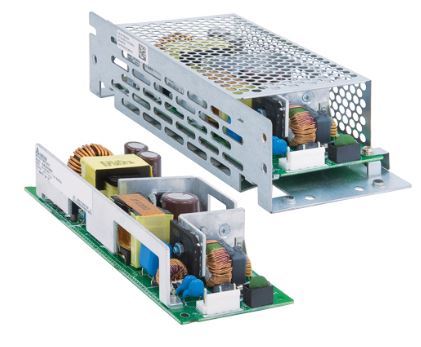

The PJB series of Open Frame Power Supply comes with universal AC input at 85 Vac to 264 Vac. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The feature built-in Power Boost of 200% for 10 seconds enables reserve power to be always available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher power rating. Metal chassis and case cover are available as options for different installation preferences.
The PJB series is certified for EMI standards according to EN/BS EN 55032 and EMS according to EN/BS EN 55024. The products conform to major international safety standards according to EN/UL 62368-1 standards and are fully compliant with RoHS Directive for environmental protection.
