• Universal AC input voltage
• Standard industrial foot print of 2” x 4”
• Low leakage current < 0.1 mA
• High MTBF > 700,000 hrs as per Telcordia SR-332

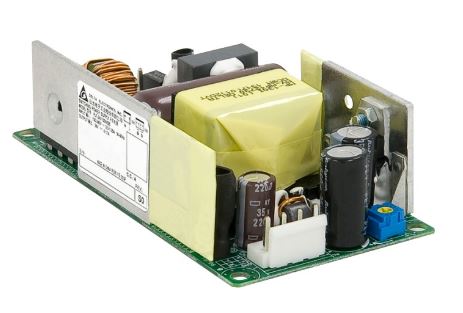

Article number	PJT-12V100WBBA
Available stock	5
Manufacturer	Delta
Type	AC/DC
Input Voltage	90 – 264VAC
Output voltage	12V
Output current	8.33A
Total power	100W
Peak power	70W
Op. temperature	-10 / +70°C
Size	102×50.8×31.8mm
Weight	150g
Efficiency	87%
Formfactor	Open Frame
Application	Industry
Specials	OVP, OLP, OTP, SCP, EN62368, 3kVAC isolation

The PJT open frame power supply series offers choices of 12 V, 15 V, 18 V and 24 V nominal output voltages. The single output products are designed with small standard industrial foot prints at 2” x 4”. The highly efficient convection cooling designs enable optimum thermal management for high power efficiency. The PJT series of products can operate from -10°C to +70°C across the entire input voltage range of 90 to 264 Vac and are certified for safety standard according to IEC/EN/UL 62368-1 and for EMI standard according to EN/BS EN 55032, Class B.
