• Universal AC input voltage
• Built-in Active PFC and fan speed control
• Full Aluminium casing for light weight and corrosion resistant handling
• Conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
• Cold start -20°C at 100% load (200W)
• Short Circuit / Overvoltage / Overcurrent / Over Temperature Protections

Article number	PMF-24V200WCGR
Available stock	1
Manufacturer	Delta
Type	AC/DC
Input Voltage	85 – 264VAC
Output voltage	24V
Output current	8.4A
Total power	200W
Op. temperature	-10 / +70°C
Size	190x93x50mm
Weight	660g
Efficiency	87%
Formfactor	Enclosed
Application	Industry
Specials	EN62368, SCP, OVP, OCP, OTP, cold start (-20°C)

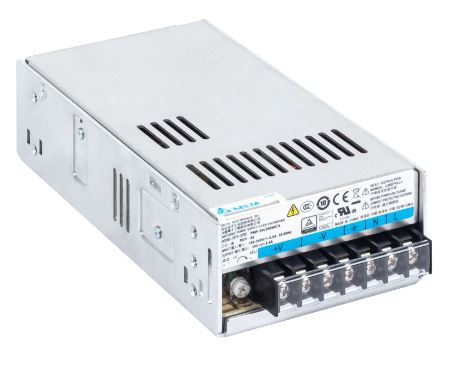

The PMF Panel Mount Power Supply series currently offers nominal output voltages of 24V. These power supply units come with universal AC input from 85Vac to 264Vac and wide operating temperature of -10°C to +70°C. The built-in active PFC provides high power factor and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. This versatile series has two different connector options (Front Face and Terminal Block) to satisfy different application needs. Remote ON/OFF function is also available for the PMF series. All PMF power supplies conform to major international safety standards including IEC/EN/UL 62368-1 standards and are fully compliant with RoHS Directive for environmental protection.
