- Low input to output differential voltage
- Very good dynamic properties
- Input undervoltage lock-out
- Parallel configurations possible
- Continuous no-load and short-circuit proof
| Article number | PSA55-7RY |
| Available stock | 16 |
| Manufacturer | Bel Power (Melcher) |
| Type | DC/DC |
| Input Voltage | 7 – 35 VDC |
| Output voltage | 5V |
| Output current | 5A |
| Total power | 25W |
| Op. temperature | -25 / +71°C |
| Size | 70.2×50.2×25.xmm |
| Weight | 100g |
| Efficiency | 83% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | SCP, UVP, parallel possible |

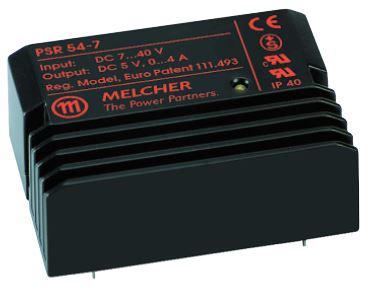

The PSR series of positive switching regulators is designed as power supply modules for electronic systems. Their major advantages include a high level of efficiency that remains virtually constant over the entire input range, high reliability, low ripple and excellent dynamic response. Safety according to IEC/EN 6095.
Modules with input voltages up to 80 V are specially designed for secondary switched and battery driven applications. The case design allows operation at nominal load up to 71°C without additional cooling.
