• Wide Input voltgage range
• Input undervoltage lockout
• Active current sharing in parallel operation
• Output voltage adjustment, inhibit, and sense lines
• Continuously no-load and short-circuit proof

Article number	PSS1212-7
Available stock	21
Manufacturer	Bel Power (Melcher)
Type	DC/DC
Input Voltage	15-80VDC
Output voltage	12V
Output current	12A
Total power	144W
Op. temperature	-25 / +71°C
Size	169x60x111 mm
Weight	1.3kg
Efficiency	90%
Build	Casette
Application	Railway
Specials	H15 Connector, EN50155, EN50121

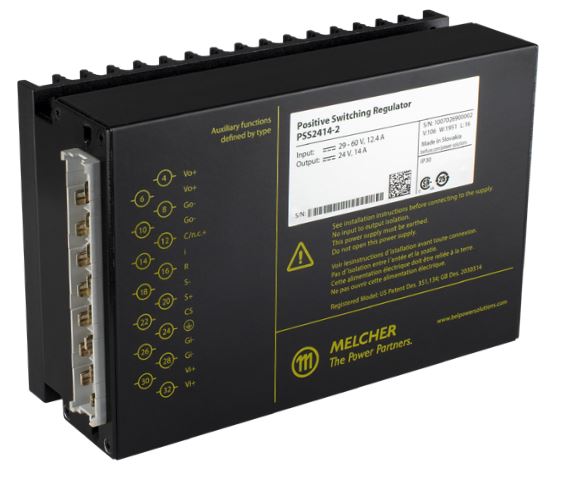

The PSK/PSS Series of positive switching regulators is de –
signed as power supplies for electronic systems, where no
input-to-output isolation is required. Their major advantages in-
clude a high level of efficiency, high reliability, low output ripple,
and excellent dynamic response. Models with input voltages
up to 144 V are specially designed for secondary switched and
battery-driven mobile applications. The converters are suitable
for railway applications according to EN 50155 and EN 50121.
Two types of housing are available allowing operation up to
71 °C. They are designed for insertion into a 19″ DIN-rack or
for chassis mounting. Replacing the heat sink by an optional
cooling plate, allows chassis or wall mounting on top of a metal
surface, acting as heat sink
