- Non-isolated
- Adjustable output voltage
- Internal short circuit protection
- ON/OFF control (ground off)
- Positive to negative converter
| Article number | R-615.0P |
| Available stock | 2 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 9 – 32VDC |
| Output voltage | 5V |
| Output current | 1A |
| Total power | 5W |
| Op. temperature | -40 / +85°C |
| Size | 32.2×9.1x15mm |
| Weight | 9g |
| Efficiency | 84% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | Step Down, Output adjustable, SIP Package |

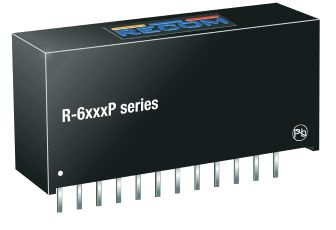

The R-6xxx series is a high performance 1.5V to 15V (18V), 1.1 Amp to 2Amp, 12-Pin SIP (single in-line package) switching regulator. The Synchronous rectification yields excellent efficiencies up to 97%. Short circuit protection reduces the short circuit input current to under 50mA.
