- UL/CSA and IEC/EN safety certified
- High isolation 6.4kVDC/1s
- Suitable for IGBT applications
- Qualified with 65kV/μs @ Vcommon mode =1KV
| Article number | R05P12S |
| Available stock | 15 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 4.5 – 5.5VDC |
| Output voltage | 12V |
| Output current | 84mA |
| Total power | 1W |
| Op. temperature | -40 / +90°C |
| Size | 19.5×9.8×12.5mm |
| Weight | 4.3g |
| Efficiency | 73% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | EN62368, 6.4kVDC isolation, SCP |

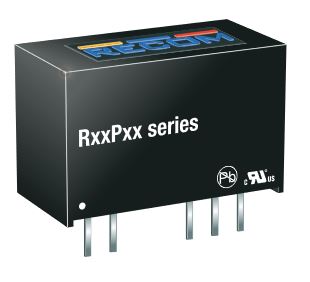

The RxxPxxS_D Series of DC/DC Converters are certified to UL/CSA60950-1 as well as EN60950-1. This makes them ideal for safety applications where approved isolation is required.
