- Compact low profile AC-DC power supply
- 30mW no load power consumption
- Class II power supply with 3kVAC isolation
- Universal input voltage range (80~264VAC)
- Low output ripple/noise
| Article number | RAC02-09SC |
| Available stock | 67 |
| Manufacturer | Recom |
| Type | AC/DC |
| Input Voltage | 80 – 264VAC |
| Output voltage | 9V |
| Output current | 222mA |
| Total power | 2W |
| Op. temperature | -25 / +85°C |
| Size | 33.7×22.2×17.8mm |
| Weight | 25g |
| Efficiency | 72% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 3kVAC isolation, EN60950, SCP, Class II |

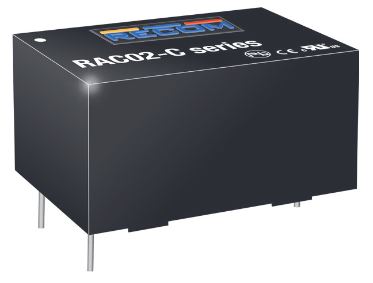

The RAC01-SC and RAC02-SC series are ultra-compact universal input AC/DC power modules for PCB mounting. They feature high efficiency, low standby power, high operating temperature, soft start and short-circuit protection as well as a built-in EMC Class B filter. Output voltages range from 3.3VDC to 24VDC
