- Low cost 1W converter
- Power sharing on dual output versions
- 1kVDC/1s isolation
- UL94V-0 package material
| Article number | RB-2405D |
| Available stock | 5 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 21.6 – 26.4VDC |
| Output voltage | 5V |
| Output current | 100mA |
| Output voltage 2 | -5V |
| Output current 2 | 100mA |
| Total power | 1W |
| Op. temperature | -40 / +85°C |
| Size | 16.9x6x10.2mm |
| Weight | 2.2g |
| Efficiency | 74% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | EN60950, EN55032, 1kVDC isolation |

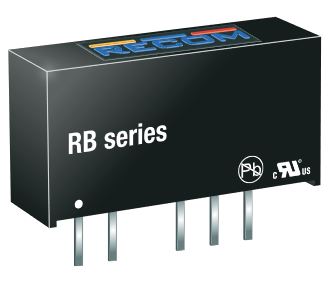

The RB series DC/DC converter has been designed for isolating or converting DC power rails in general purpose applications. Although low cost, it does not compromise on features and offers 1KVDC/1s isolation, a –40°C to +85°C operating temperature range.
