- 6kVDC Isolation
- Feedback Regulated Output
- Continuous Short Circuit Protection
- Medical Approvals

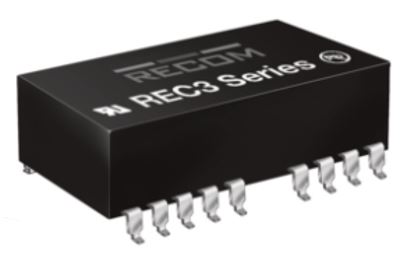

| Article number | REC3-2412DRW/H6/C |
| Available stock | 9 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 9 – 36VDC |
| Output voltage | 12V |
| Output current | 125mA |
| Output voltage 2 | -12V |
| Output current 2 | 125mA |
| Total power | 3W |
| Op. temperature | -40 / +85°C |
| Size | 32×20.3×10.2mm |
| Weight | 13g |
| Efficiency | 84% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 6kVDC isolantion, “C” pinout |
Besides the standard isolation of 2kVDC, this series offers options of 4kVDC (= “/H4″) or 6kVDC (=”/H6″) making it suitable for medical applications and other sophisticated industrial applications. Packaging can be either DIP-24 plastic or 5-side-shielded DIP24 metal case (=option”/M”) as well as SMD pinning (= option “/SMD”). For all the above variants, 2 industry-standard pinouts (= option “/A” or “/C”) are available, and B pinning is available with 1.6kVDC isolation. Remote on/off control is possible with the /CTRL option (A pinning only). The converters can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents.
