• 6kVDC Isolation
• 5W DIP24 Industry Standard Package
• Feedback Regulated Output
• Continuous Short Circuit Protection
• Approved for Medical Applications
• 5-side-shielded DIP24 metal case

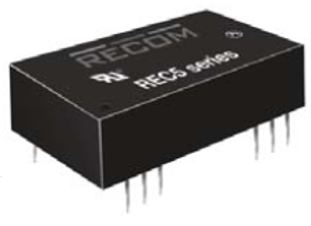

Article number	REC5-2405DRWZ/H6/A/M
Available stock	3
Manufacturer	Recom
Type	DC/DC
Input Voltage	9 – 36VDC
Output voltage	5V
Output current	0.5A
Output voltage 2	-5V
Output current 2	0.5A
Total power	5W
Op. temperature	-40 / +75°C
Size	32×20.3×10.2mm
Weight	13g
Efficiency	82%
Formfactor	THT mountable
Application	Industry
Specials	6kVDC Isolation, A Pinout, medical, metal case

This series offers an isolation 6kVDC making it ideal for both industrial, medical and other sophisticated high end applications. Packaging can be either DIP-24 non-conductive plastic or 5-side-shielded DIP24 metal case (= option “/M”). For all the above variants, 2 industry-standard pinouts (= option “/A” or “/C”) are available. The converters can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents.
