- 8W DIP24 Package
- 3kVDC Isolation
- Full SMD internal design
- Remote Control Pin

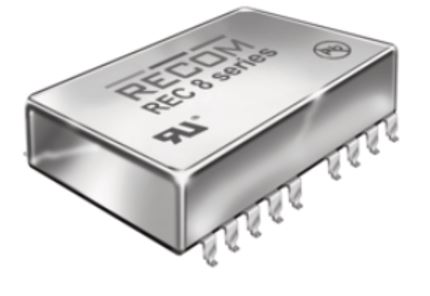

| Article number | REC8-2415DRW/H3/A/M |
| Available stock | 1 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18 – 36VDC |
| Output voltage | 15V |
| Output current | 267mA |
| Output voltage 2 | -15V |
| Output current 2 | 267mA |
| Total power | 8W |
| Peak power | 12W |
| Op. temperature | -40 / +85°C |
| Size | 32×20.3×10.2mm |
| Weight | 18g |
| Efficiency | 85% |
| Formfactor | THT mountable |
| Application | Medical |
| Specials | EN60950, EN60601, 3kVDC isolation, A pinout |
The REC8-xxxxSRW/DRW-series offer single and dual regulated outputs in a DIP24 package with 2kV or 3kV isolation options and are suitable for higher power industrial or medical applications. Remote on/off control is standard. The converters can deliver 150% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents
