- Clearance and creepage distance: 8mm
- Reinforced insulation for 250VAC working voltage
- 5kVAC I/P to O/P 2MOPP isolation
- 2μA patient leakage current
- Industry standard pinout
| Article number | REM6-1205S/A/CTRL |
| Available stock | 20 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 9-18VAC |
| Output voltage | 5V |
| Output current | 1.2A |
| Total power | 6W |
| Op. temperature | -40 / +105°C |
| Size | 31.8×20.3×10.4 mm |
| Weight | 14g |
| Efficiency | 86% |
| Formfactor | THT-mountable |
| Application | Medical |
| Specials | 2MOPP, A pinning, 5kV isolation, 8mm clearance |

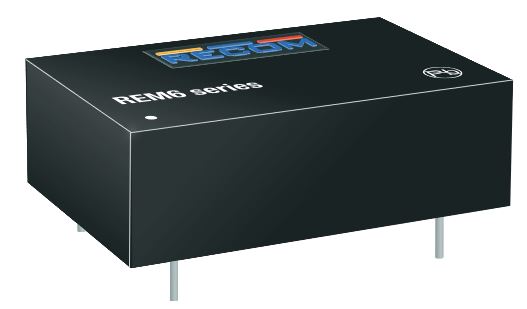

The REM6 series of medical grade regulated DC/DC converters features reinforced 5kVAC/1 minute isolation with low 2μA leakage and are 60601-1 3rd Ed. certified for 250VAC continuous working. The compact DIP24 package offers tightly regulated single and dual outputs, even under no-load condi-
tions. The outputs are short circuit and overload protected. The converters are available in two different pinning options and optionally with an external control pin for standby consumption as low as 12.5mW. The converters are fully certified to CB, IEC/EN and ANSI/AAMI standards and carry the UL mark.
