- No heatsink required
- 1kVDC/1s basic isolation
- UL94V-0 package material
| Article number | RN-2415S |
| Available stock | 18 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 21.6 – 26.4VDC |
| Output voltage | 15V |
| Output current | 84mA |
| Total power | 1.25W |
| Op. temperature | -40 / +85°C |
| Size | 12.6×10.1×7.62mm |
| Weight | 1.9g |
| Efficiency | 82% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 1kVDC isolation, reach 100°C ambient |

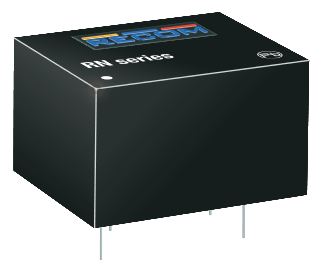

The RN series of compact 1.25W single output converters are especially useful when more than 1W of power is required, but there are space restrictions than make a 2W converter unsuitable. The converter series feature an industrial ambient temperature operating range of -40°C to +85°C without derating and up to 100°C ambient temperature with derating.
