- Pot-core transformer – separated windings
- high 5.2kVDC/1s basic isolation in compact size
- Pin compatible with RH and RK series
- Suitable for IGBT applications
| Article number | RP-1505S |
| Available stock | 44 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 13.5 – 16.5VDC |
| Output voltage | 5V |
| Output current | 200mA |
| Total power | 1W |
| Op. temperature | -40 / +85°C |
| Size | 19.7×7.05×10.2mm |
| Weight | 2.4g |
| Efficiency | 71% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 5.2kVDC isolation, EN60950, EN60601, EN55032 |

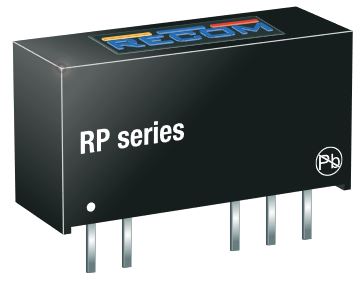

The RP series has very high isolation of 5.2kVDC in a compact size. The converters are suitable for IGBT driver applications.
