- 4:1 wide input voltage range
- UL/IEC/EN60950-1, EN50155 certified
- Protected outputs
- EN55032 compliant
| Article number | RP08-4812SAW/SMD |
| Available stock | 13 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18 – 75VDC |
| Output voltage | 12V |
| Output current | 0.66A |
| Total power | 8W |
| Op. temperature | -40 / 105°C |
| Size | 32×20.3×11.2mm |
| Weight | 20g |
| Efficiency | 87% |
| Formfactor | SMT mountable |
| Application | Railway |
| Specials | EN60950, EN50155, EN45545, SCP, OVP, OLP |

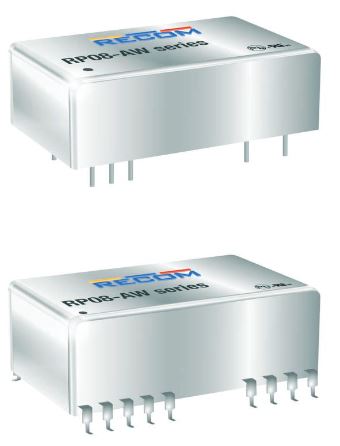

The RP08-AW series wide range input DC/DC converters are certified to UL60950-1 and cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The 24V and 110VDC input versions have been especially designed for railway applications. The DIP24 package is available in both pinned and SMD case styles and meets military standards for thermal shock and vibration tolerance
