- 1.6kVDC isolation
- UL60950-1 certified
- Fixed operation frequency
- Six-sided continuous shield
| Article number | RP10-2412SE |
| Available stock | 2 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18-36VDC |
| Output voltage | 12V |
| Output current | 830mA |
| Total power | 10W |
| Op. temperature | -25 / +100°C |
| Size | 50.8×25.4×10.2 mm |
| Weight | 27g |
| Efficiency | 84% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | Six sided shield, UL60950-1, fix frequency, 1.6kV isolation |

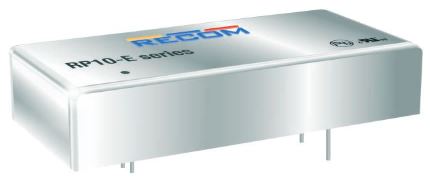

The RP10-E series DC/DC converters are certified to UL 60950-1 and cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The industry standard 2” x 1” package meets military standards for thermal shock and vibration tolerance and is available with an optional remote on/off control pin. This series is also available with the /M1 and /M2 option which is particularly suitable for extended temperature range applications.
