- 1.6kVDC isolation
- Six-sided continuous shield
- No minimum load required
| Article number | RP15-1212SA/N |
| Available stock | 506 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 9 – 18VDC |
| Output voltage | 12V |
| Output current | 1.3A |
| Total power | 15W |
| Op. temperature | -40 / 105 °C |
| Size | 25.4×25.4×9.9 mm |
| Weight | 15g |
| Efficiency | 86% |
| Formfactor | THT mount |
| Application | Industrial |
| Specials | 1.6kVDC isolation, Six-sided continuous shield, low ripple and noise |

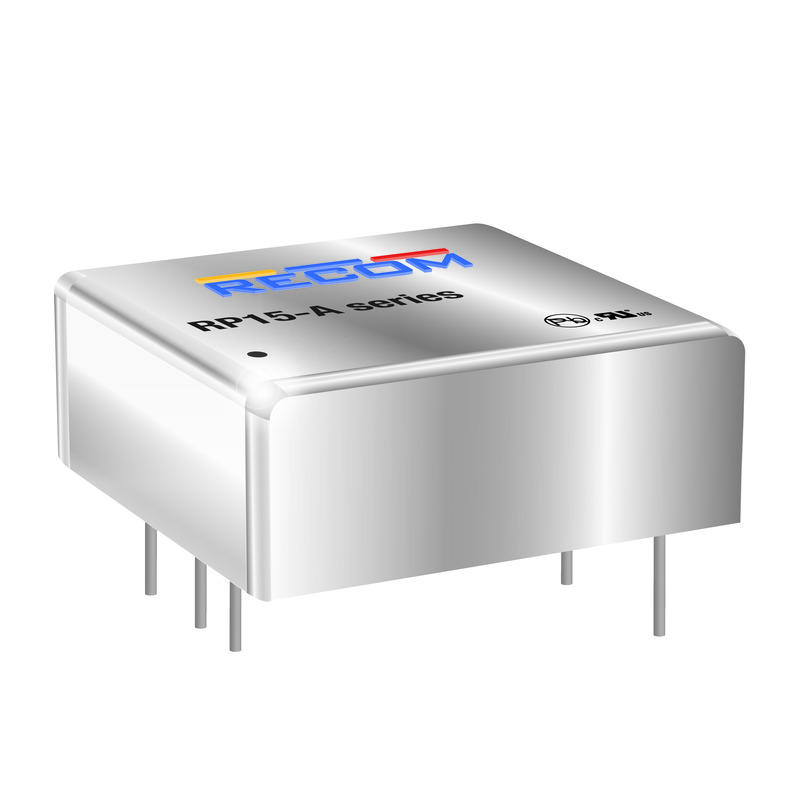

The RP15-A series are ultraminiature power DC/DC converters in a case half the size of industry standard 15W converters. Despite their small size, the RP15-A converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1600VDC isolation and low ripple/noise figures. The outputs are also fully protected against short circuits, overcurrent and overvoltage. The RP15-A series will find many uses in applications where board space and/or board height is at a premium.
