- Wide 4:1 input voltage range
- 2.25kVDC isolation
- Six-sided continuous shield
- EN50155, UL/IEC/EN60950-1 certified
| Article number | RP20-4815SFR/P |
| Available stock | 4 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18 – 75VDC |
| Output voltage | 15V |
| Output current | 1.33A |
| Total power | 20W |
| Op. temperature | -40 / +100°C |
| Size | 50.8×25.4×10.2mm |
| Weight | 30g |
| Efficiency | 89% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | EN60950, SCP, OVP, OLP, 2.25kVDC isolation |

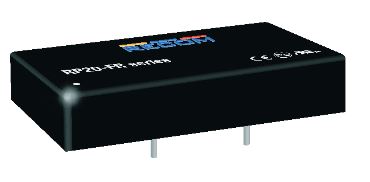

The RP20-FR series wide range input DC/DC converters are certified to UL60950-1 and cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The 110VDC input versions have been especially designed for railway applications.
