- Tx Temperature Range without Derating
- -45°C Minimum Operating Temperature
- EN 50155 Compliant
- Six Sided Shielded Enclosure
- Isolated and Fully Protected Outputs
| Article number | RPR40-11024S |
| Available stock | 1 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 40 – 160VDC |
| Output voltage | 24V |
| Output current | 1.67A |
| Total power | 40W |
| Op. temperature | -45 / +110°C |
| Size | 50.8×30.5×11.7mm |
| Weight | 39g |
| Efficiency | 85% |
| Formfactor | THT mountable |
| Application | Railway |
| Specials | EN50155, EN50121, 6 side shield, ribbed case |

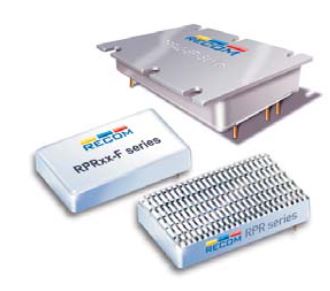

The RPR40 series DC/DC converters are designed for railway rolling stock applications. Besides covering all the input voltages from 24VDC up to 110VDC, the converters have a very wide operating temperature range of -45°C to +85°C. Although the case size is very compact, the converter contains a built-in EMI filter, so no active external filter components are required. The RPR40 is available in three case styles: a low profile flat top case, a ribbed case with a built-in heatsink and the baseplate case for high vibration or bulkhead-mounting applications. They are EN 50155 and EN 50121-3-2 compliant.
