- SIP8 Package style
- UL94V-0 Package material
- Continuous short circuit protected
- Low noise
- 1kVDC Isolation
| Article number | RSO-2415S |
| Available stock | 326 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18-36VDC |
| Output voltage | 15V |
| Output current | 67mA |
| Total power | 1W |
| Op. temperature | -40 / +100°C |
| Size | 21.8×11.1×9.2 mm |
| Weight | 4.7g |
| Efficiency | 78% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 1kV DC isolation, short cirquit protection, EN60950 |

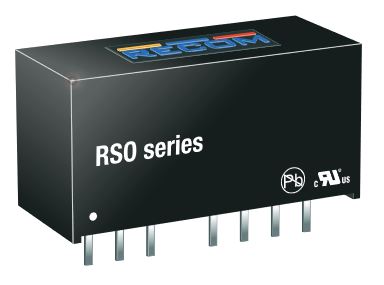

High-power-density, an industrial temperature range of -40°C to +100°C and extra features like On-Off-control are just some of the characteristics of this converter, ideal for highly sophisticated industrial-designs. The RSO series is available with isolation of 2kV or 3kV by choosing option „/H2“ or „/H3“. The standard version offers 2:1 input voltage range, while the “Z” version features 4:1 input voltage range, which includes an input voltage range covering both 5V and 12V supplies.
