- 4:1 Wide input voltage range
- SIP8 Package style
- Continuous short circuit protected
- 3kVDC Isolation
- Low noise

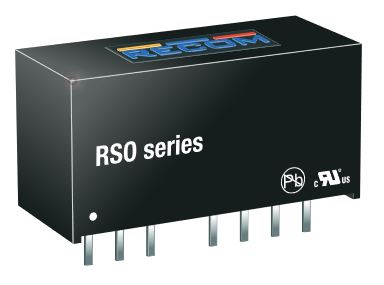

| Article number | RSO-243.3SZ/H3 |
| Available stock | 5 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 9 – 36VDC |
| Output voltage | 3.3V |
| Output current | 300mA |
| Total power | 1W |
| Op. temperature | -40 / +100°C |
| Size | 21.8×9.2×11.1mm |
| Weight | 4.7g |
| Efficiency | 69% |
| Formfactor | THT mountable |
| Application | Industry |
| Specials | 3kVDC isolation, EN60950, EN60601 |
High-power-density, an industrial temperature range of -40°C to +100°C and extra features like On-Off-control are just some of the characteristics of this converter, ideal for highly sophisticated industrial-designs. The RSO series is available with isolation of 2kV or 3kV by choosing option „/H2“ or „/H3“. The standard version offers 2:1 input voltage range, while the “Z” version features 4:1 input voltage range.
