• 1kVDC Isolation
• Approved for Medical Applications
• Suitable for Automated Assembly
• High Power Density

Article number	RTS-2405/P
Available stock	17
Manufacturer	Recom
Type	DC/DC
Input Voltage	21.6 – 26.4VDC
Output voltage	5V
Output current	400mA
Total power	2W
Op. temperature	-40 / +85°C
Size	12.8×9.3x9mm
Weight	2.1g
Efficiency	83%
Formfactor	SMT mountable
Application	Industry
Specials	Short cirquit protection, 1kVDC isolation

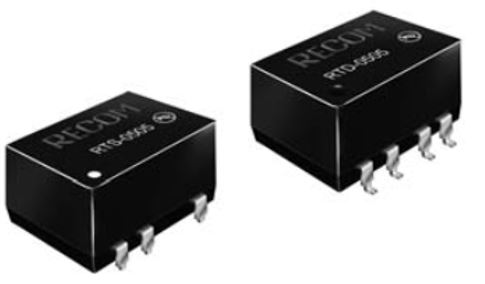

Compared to standard 2 Watt packages, space savings of 80% and 77% respectively are achieved by these RTS & RTD 2 Watts SMD-Miniature DC/DC Converters. They have been specifically designed for applications where board space is at a premium since these 2 Watt converters have only a slightly larger foot print than conventional 1 Watt converters.
With efficiencies up to 85%, external cooling is not needed, as the full output power is available over the operating temperature range -40°C to +85°C. All converters have an I/O-Isolation of 1kVDC making them suitable for many industrial and medical applications.
