- 1kVDC isolation
- DIP24 low profile package style
- UL94V-0 package material
- Short circuit protected
| Article number | RW-2415S/SMD |
| Available stock | 117 |
| Manufacturer | Recom |
| Type | DC/DC |
| Input Voltage | 18 – 36VDC |
| Output voltage | 15V |
| Output current | 200mA |
| Total power | 3W |
| Op. temperature | -40 / +80°C |
| Size | 32.2×14.5×10.2mm |
| Weight | 7.7g |
| Efficiency | 85% |
| Formfactor | SMT mountable |
| Application | Industry |
| Specials | EN55032 compliant |

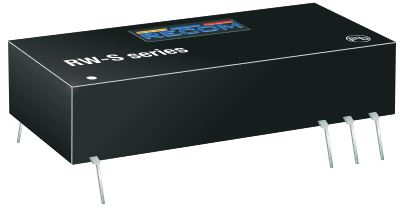

The RW-S series with 2:1 input voltage ranges and max. height of 7.0 mm has been designed for the industrial automation markets. They are aimed at applications where pcb-space is at a premium. The converters supply the full 3 watts without additional heat-sinks over the temperature range -40°C to +80°C.
